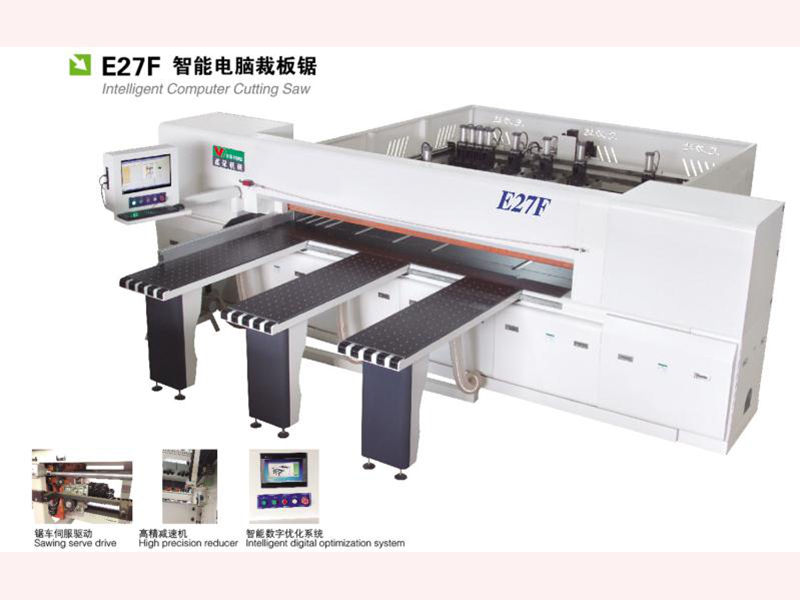

E27F Smart computer panel saw
Instructions：
| Sawing length： | 2680mm | Saw back speed： | 100m/min |
| Sawing thickness： | 90mm | Main saw motor： | 13KW |
| Main blade diameter： | 400mm | Saw drive motor： | 1.5KW |
| Main blade shaft diameter： | 30mm | Automatic feeding motor： | 1.5KW |
| Main blade speed： | 4800rpm | Total power： | 19KW |
| Slot saw blade diameter： | 180mm | Automatic feeding speed： | 42m/min |
| Slot saw blade diameter： | 30mm | Use air pressure： | 5—7kg/cm2 |
| Slot saw blade speed： | 6500rpm | Workbench height from the ground： | 900mm |
| Saw seat forward speed： | 1—80m/min | Dimensions： | 5300*5630*1750mm |
| weight： | 4500kg |
|
|
